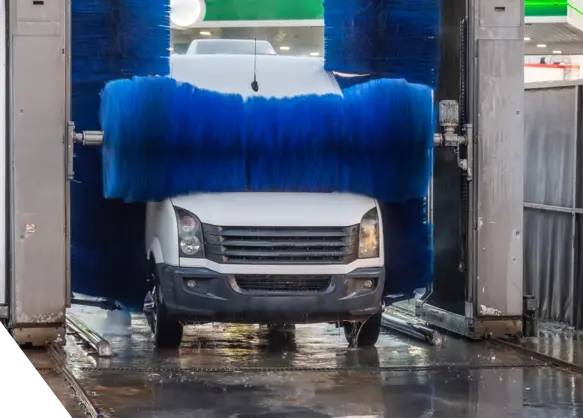

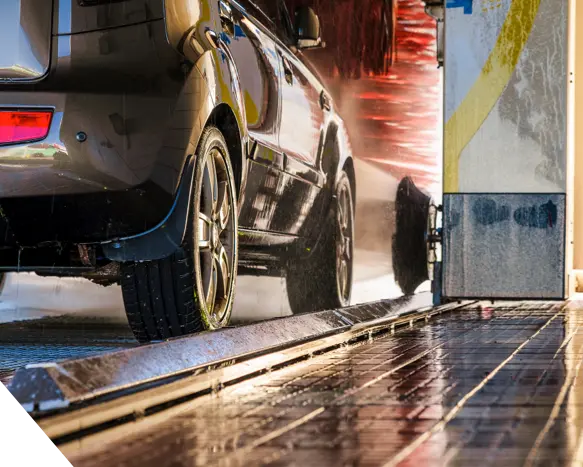

Automated vehicle wash systems demand precise, durable solenoid valves to control high-pressure water flow, chemical injection, and air-drying cycles. At Gould Solenoid Valves, we manufacture corrosion-resistant, long-lasting solenoid valves built to withstand harsh wash environments and provide reliable operation in commercial car washes, truck wash systems, and fleet maintenance facilities.
Our General Purpose M & Q Series valves offer consistent performance for standard vehicle wash applications, while our High-Pressure D Series valves are specifically engineered for high-pressure truck washes. With same-day and next-day shipping, we help minimize downtime and keep wash operations running smoothly.
Browse Our Inventory
Solenoid valves are essential in automated car and truck wash systems, regulating fluid flow, pressure, and chemical distribution to ensure efficient, consistent wash cycles. Gould Solenoid Valves are built to handle:
Gould Solenoid Valves provide precise fluid control, high-speed actuation, and long-term durability in automated wash systems, fleet maintenance, and industrial cleaning applications. Built to withstand high-pressure water, detergents, compressed air, and steam, our solenoid valves ensure consistent performance in harsh wash environments.
Gould's bronze Q series is the standard wash-bay valve: 1/8" to 3" NPT, 5–400 psi, rated to 300°F, normally closed or normally open, full port. For high-pressure liquid circuits, the bronze DHP model is rated 20–1200 psi on liquid service only in 3/4" to 2", and the BHP model covers the same 20–1200 psi range in 1/4", 3/8" and 1/2".
Gould rates its bronze wash valves at over 1,000,000 cycles. The Velvetrol® internal piston pilot design is packless and full port, and Gould reports consistent Cv across the valve's service life rather than the progressive flow loss seen as a diaphragm stretches and hardens. Gould also publishes a 3.2-month ROI payback on the switch from conventional valves.
Step up to the high-pressure bronze models. The DHP is rated 20–1200 psi in 3/4" to 2" NPT, liquid service only, to 300°F. The BHP is rated 20–1200 psi in 1/4", 3/8" and 1/2", also liquid service only. Intermediate options include the DST and BST at 10–700 psi on liquid, and DL and BL at 10–700 psi on liquids and oils.
The two dominant failure modes are diaphragm fatigue from constant cycling and hydraulic shock from abrupt closure. Velvetrol® replaces the diaphragm with an internal piston and controls the closing stroke — Gould measures pressure spikes at 10 psi versus 80 psi for a conventional valve, an 81–88% reduction, while noting conventional valves can spike above 6,600 psi in larger sizes. Being packless, there is also no packing gland to leak.
Match the seat elastomer to the chemistry. Viton® (-3V) seats are available on the M and Q bronze series for aggressive detergents and waxes; Teflon™ (-3T) is available on the Q, B and D bronze series and all stainless series for the widest chemical range. For concentrated or corrosive chemistry, move to the 316 stainless K series or the complete-316-wetted KX series at 5–300 psi.
Yes. The B and D bronze series are manual-open valves with an adjustable closing speed, so a bay can be operated or drained without coil power and closure rate can be tuned on site. Adding L to the part number provides flow-rate adjustment. Both series are rated 5–1200 psi and, with -1 high-temperature coils, to 450°F.
Most Gould valves ship 24 to 48 hours after order receipt, with same or next-business-day shipment on emergency orders, because they are manufactured in Indianapolis rather than imported. Rebuild kits ship immediately and include a new piston assembly, pilot assembly, piston spring and all applicable seals, and the valve can be rebuilt in-line without removing it from the piping.
Whether you operate a commercial car wash, heavy-duty truck wash, or fleet cleaning facility, Gould Solenoid Valves provides high-performance solutions to optimize your wash system’s fluid control. Contact us today to discuss your specific application needs.
